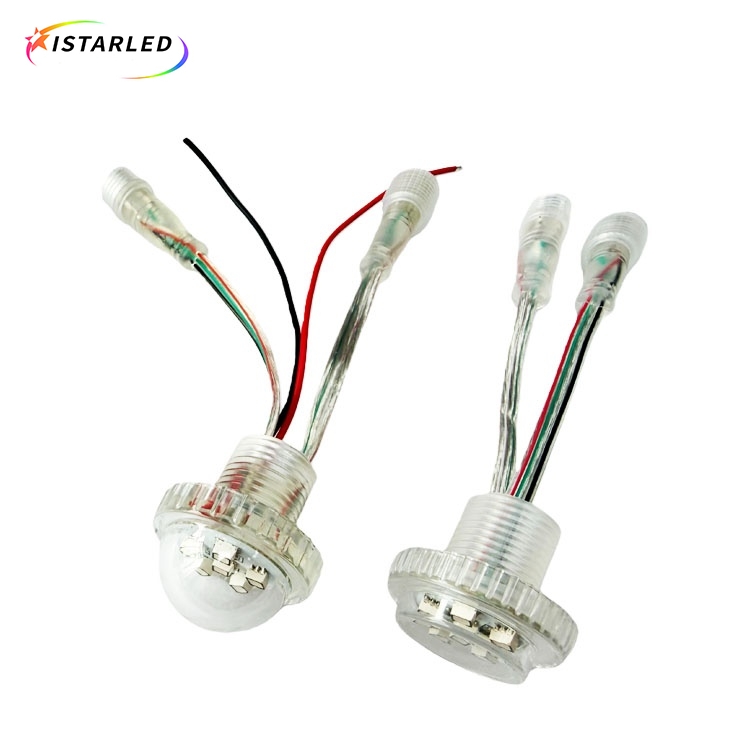

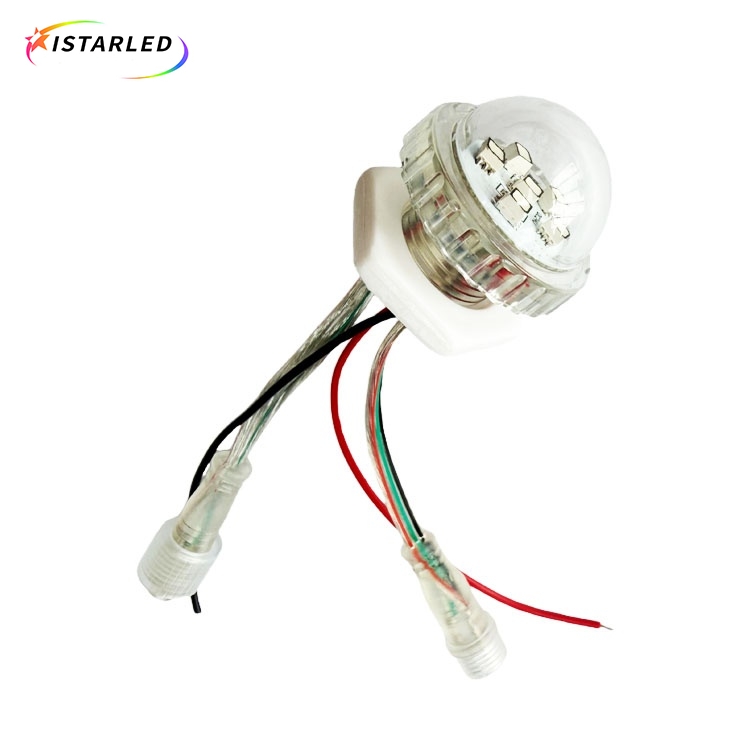

6pixels smd3535 rgb 26mm rgb pixel ucs1903 amusement led light

Part No:IL-P219V24

Features:

1.Diameter 26mm

2.6pcs smd3535 RGB black high brightnss LED

3.UCS1903 IC chip

4.dc24v,1.44W

5.Install hole:26mm/19mm/14mm

6.3Pin JST SM connectors with 8cm

What's more

This rgb pixel led is made by 6pcs smd3535 black rgb led with one pcs ucs1903 ic chip,drived by 24v, for the backside install hole we can do 26mm hole,19mm hole and 14mm hole. The glue inside from backside, so leds are fully waterproof.Normal it is with 3Pin JST SM female and male connectors with 8cm for each pixels,so you can plug them together as the quantity you need, just remember to recharge power every 20pcs. Also we can provide 20pcs with one pcs have extra power cable. And if you want to use them in outside, please tell us before order, then we can do them with waterproof plug.

The 26mm pixel led is SPI signal,you can use controller to make color changing, normal use sd card controller,such as k-1000c,k-4000,k-8000c, you also can work them with dmx, but remember to use dmx decoders or the dmx controller have multi-function with dmx to spi.
