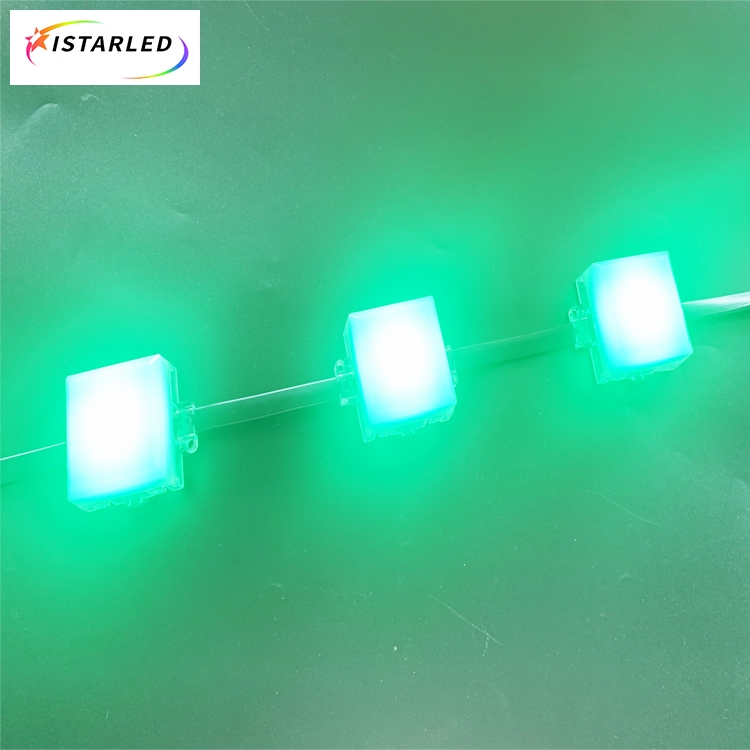

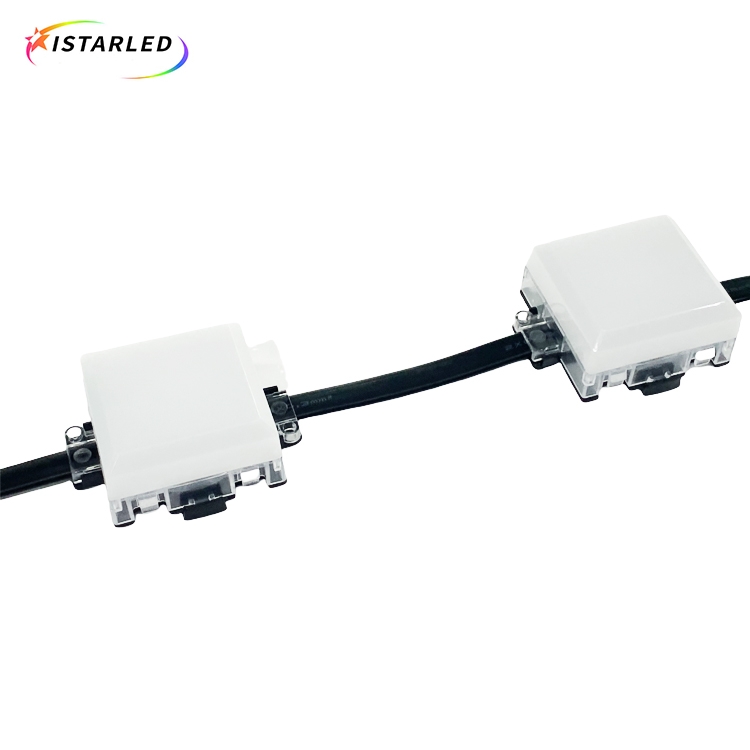

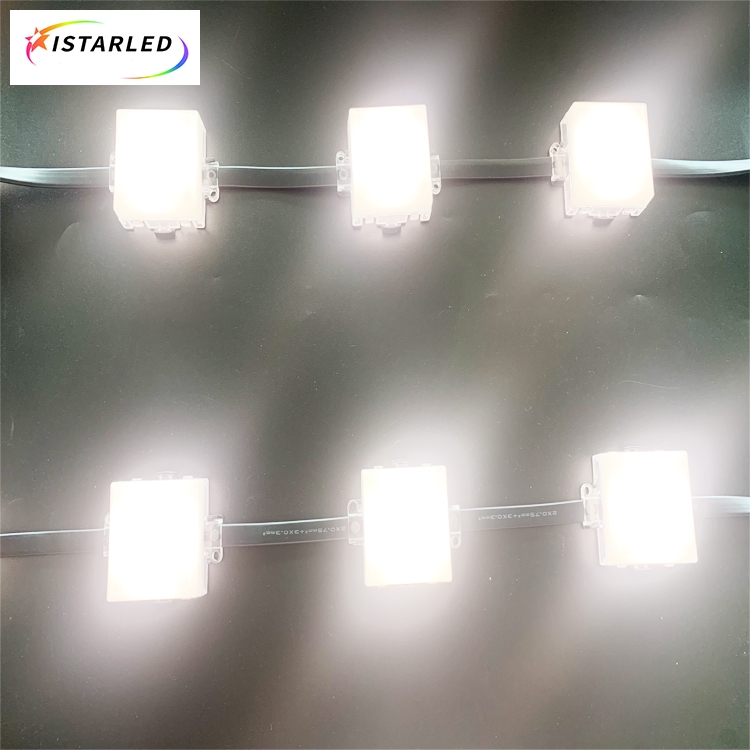

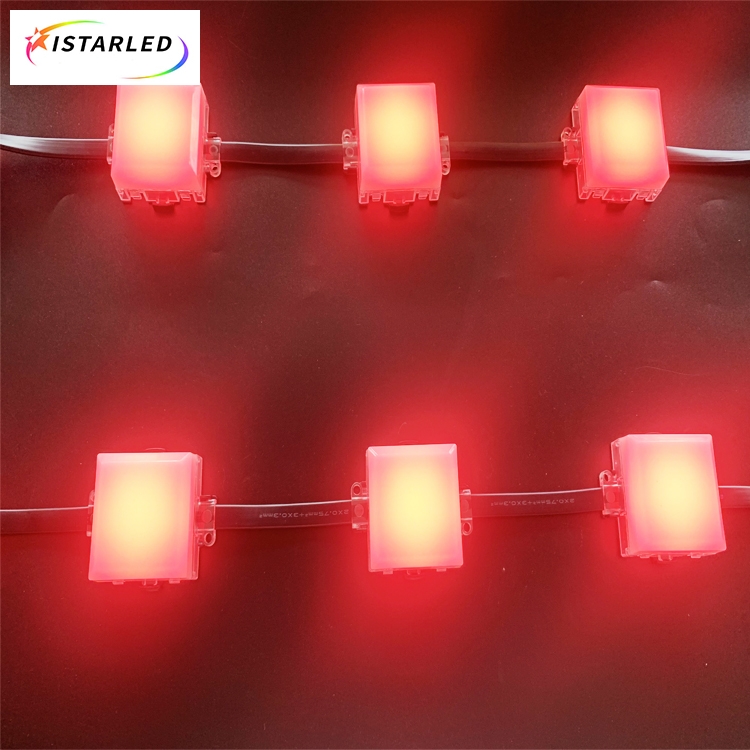

50mm DMX RGBW Square pixel led module light

PN:IL-P506V24DMX

Features:

1.Diameter 48mm ,bottom size with 60mm

2.Square milky cover

3.DC24V,1.92W/pcs

4. DMX512 signal

5.6pcs SMD5050 RGBW 4 in 1 led lamp

6.Pitch distance with 15cm or customer length

7.20pcs/string or customer

8.Waterproof IP67 with M12 waterproof connectors and cables

What's more

1. Square pixel led module light is made with 6pcs smd5050 rgbw 4 in 1 led lamp, for the white can do 3000K/4000K/6000K. Drived by UCS512 ic chip, DMX512 signal. DC24V,1.92w/PCS.

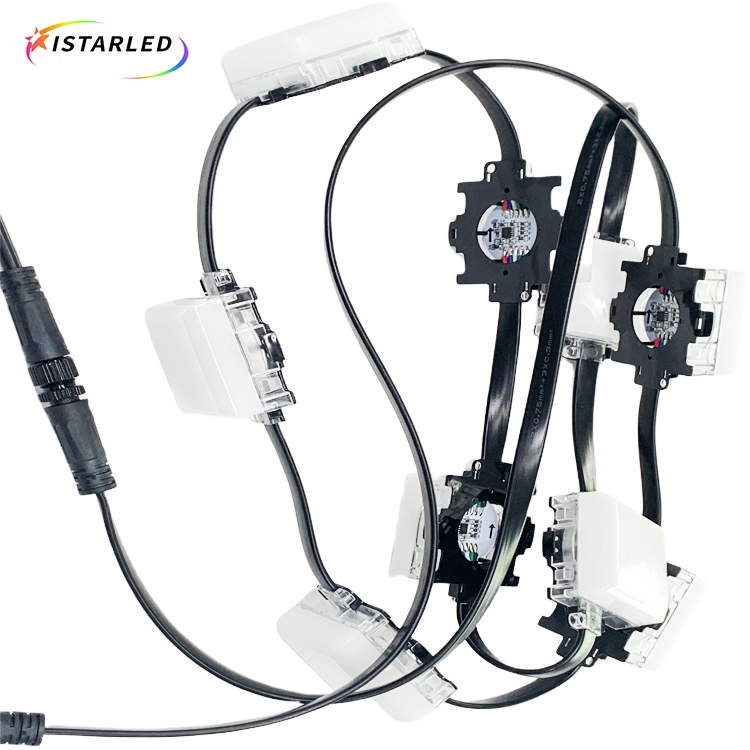

2.DMX rgbw pixel led module normal is with pitch distance 15cm, 20pcs/string, use flat waterproof cables. Each string with M12 flat waterproof connectors . Pixel led modules have glue on the backside and protect Milky cover on the surface, so waterproof outdoor use.

3.DMX pixel rgbw led module is DMX signal, and this need to use dmx addressor to write dmx address when you use them.

4.DMX led module string light use dmx controller such as ARTNET,H802RA,H801TV,BC206 and work with Madrix software
