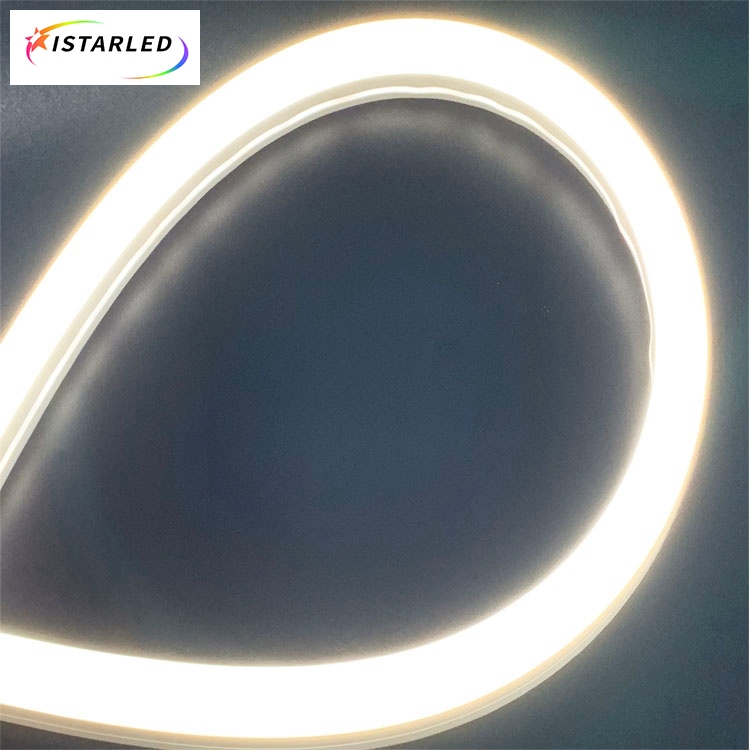

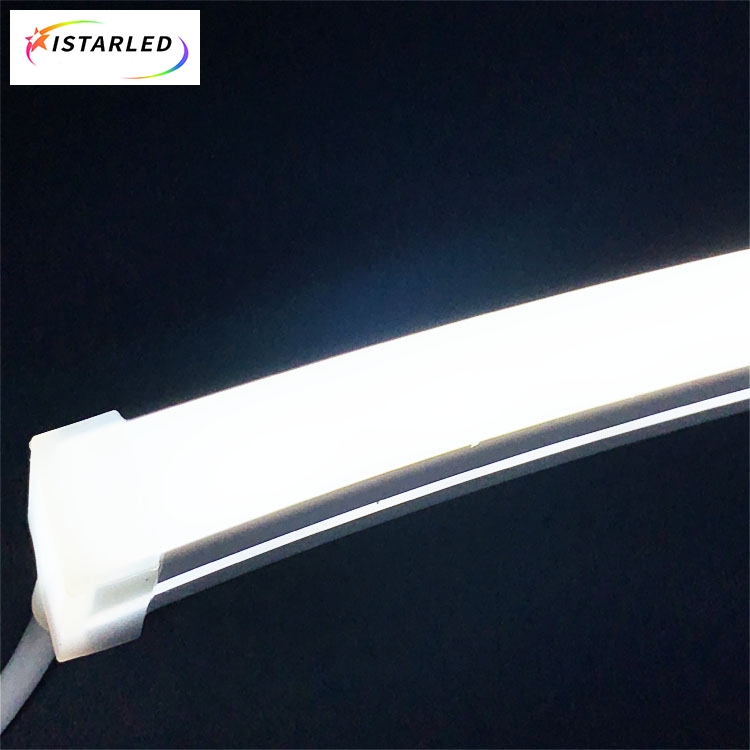

20x20mm Side view Neon flexible led strips

Part No:IL-SN2020

Features:

1.Size for neon tube :20*20mm

2.120led SMD2835 white led strips

3.dc12v/24v,15w/m

4.IP67 waterproof

5.2Pin/3Pin/4pin JST SM connectors,naked cable or  waterproof plugs

6.Also can do RGB/RGBW/Digital addressable led strips inside

7.Silicone tube,easy to bend any shape you like

8.Have cutting mark on the neon body

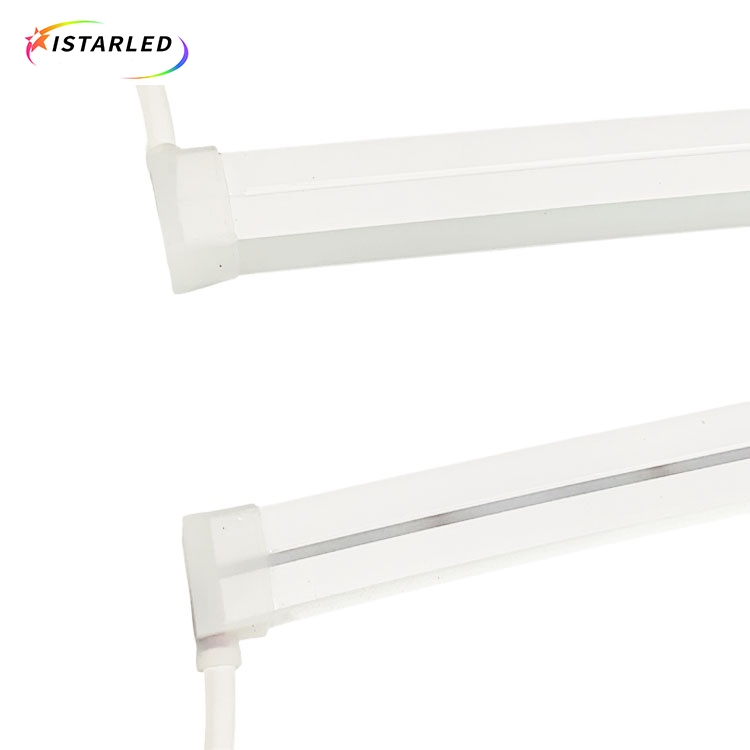

9.End cap cable out way with directly,cable out from side and cable out from bottom

10.Each meter with 2pcs screws for easy installations or use aluminum profile or use flexible aluminum profile

What's more

1.Bendable led neon strip is made of silicone materials,inside with flexible led strip such as 120leds 2835 with 12v or 24v.

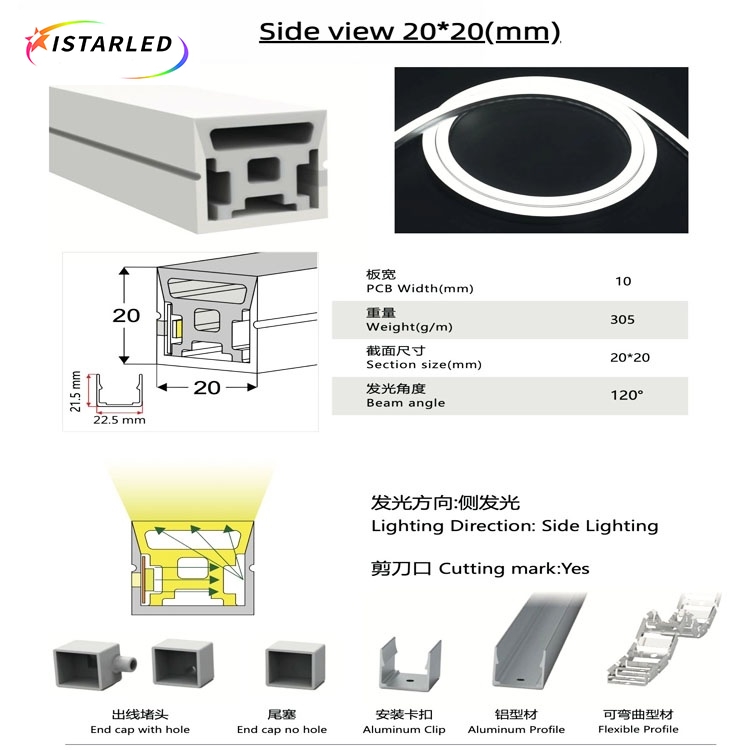

2.This neon tube light is 20*20mm,which is side view.

3. Inside of neon white led strip light is made by 10mm 120leds smd2835 led strips, white color can do 2800K/3000K/4000K/5000K/6000K/7000K, also can do red color/green color/blue color/yellow color/purple color/Mars green. Also can do RGB/RGBW/Digital/Addressable pixel rgb/rgbw led strips

4.20*20mm side view neon strip light have the advantage of fire resistance,Anti-UV,Anti-corrosion and deformation resistance.

5.The side view 20x20mm neon strip is normaly made by 5m length. Also we can do customer length,if needs,please contact us before orders.

6.Neon bendable side view 20x20mm is every 25mm can be cut for 12v,50mm can be cut for dc24v.But we suggest that you tell us what length you want, then we do the length you need.

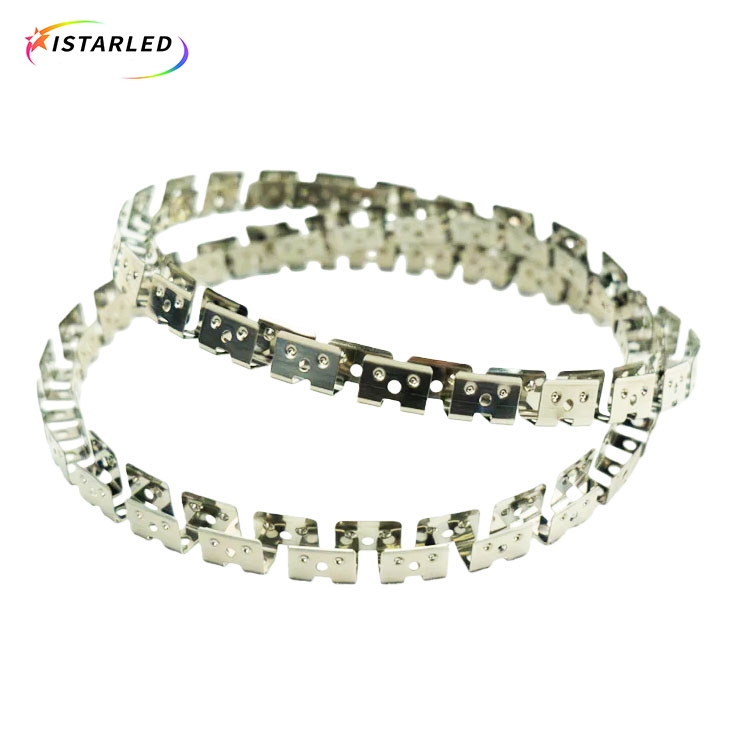

7.For the installation way of neon tube,one is every meter with 2pcs screw to fix them,2nd way is to use Aluminum profile(normal 1m long or customer length),3rd way is to use flexible aluminum profile.
