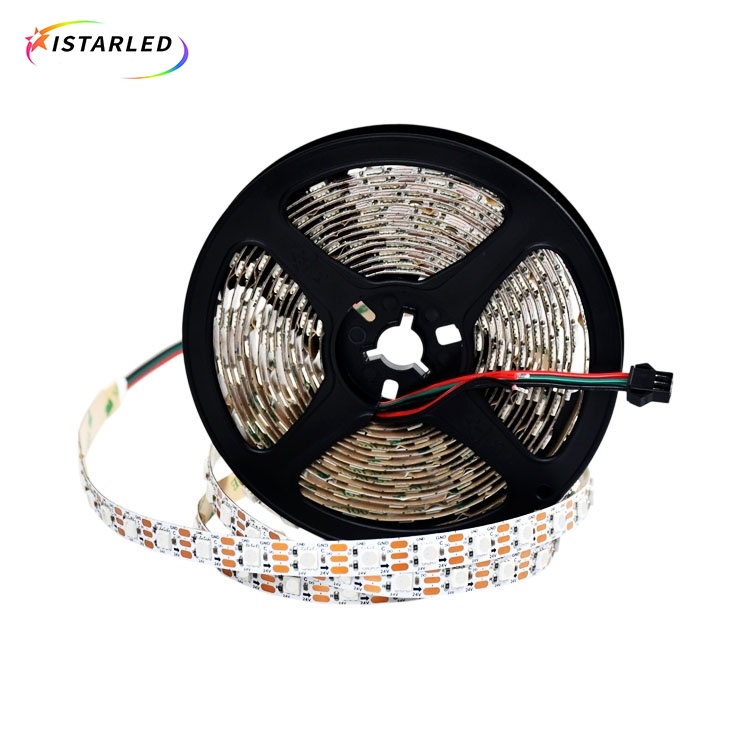

24V SK6803/LC8816 60Leds 60pixels Addressable RGB LED strip

PN:IL-S10060SK6812V24

Features:

1. DC24V addressable RGB led strip

2.SK6803/LC8816 IC built-in SMD5050 RGB LED lamp

3.60led 60pixels/m

4.DC24V,13w/m

5.10mm pcb width

6.3OZ copper pcb

7.white/black pcb

What's more

1.With the development of LED,we have 5V and 12V Built-in addressable rgb led strip, most clients also want the voltage with DC24V,so we designed DC24V addressable rgb led strips

 2. The advantage of SK6803/LC8816 pixel digital led strip is DC24V,normal 5v and 12v strips need to power on both ends of 5m strips, now dc24v addressable rgb strip only can power at begining to work with 5m long, even 8m long, but 10m long also need to power both ends.

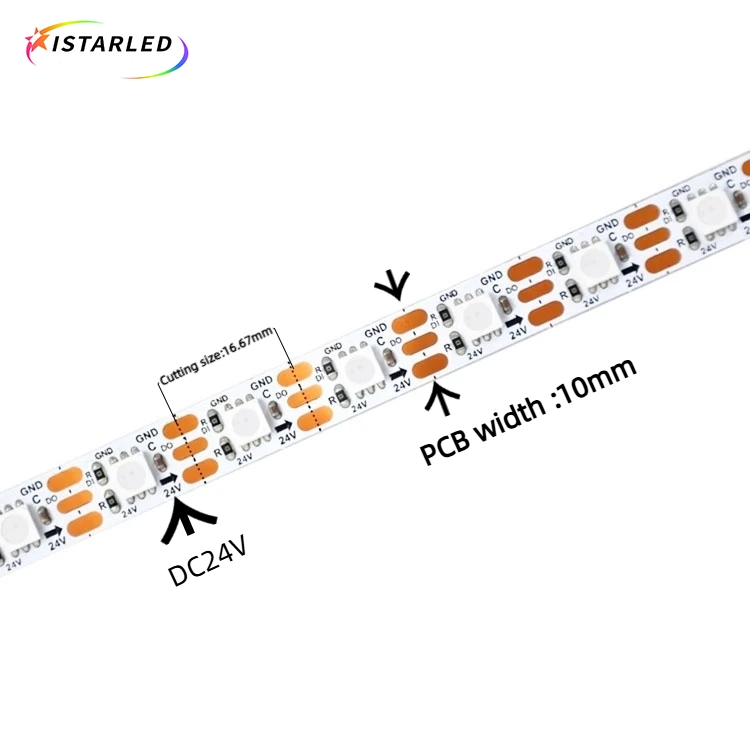

3. For the SK6803/LC8816 led strip, we have 24v SK6803/LC8816 60LEDS 60Pixels per meter, the width of SK6803/LC8816 60leds rgb tape is 10mm

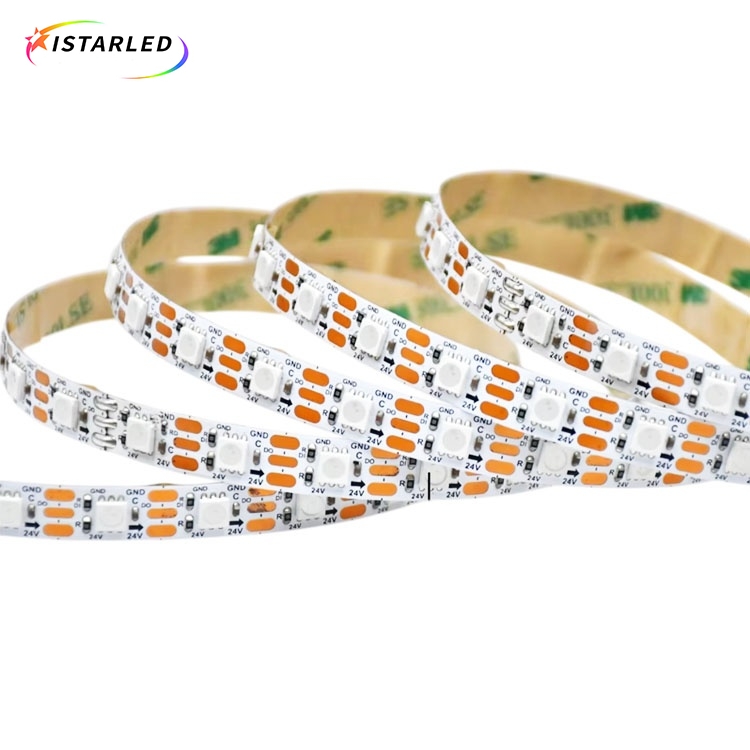

4. 24V rgb SK6803/LC8816 pixel led strip have white and black pcb for your choose. 3OZ high quality copper pcb,5m for 60led 60pixels is no voltage drop when only power at beginning.

5. 24V SK6803/LC8816 addressable rgb pixel led tape is vivid lighting performance operated by sd card controller, Arduino, Raspberry Pi , Madrix software, Artnet / DMX512 /MADRIX NEBULA led controllers.

6.24V Addressable SK6803 LC8816 pixel led tape is flexible, bright,durable and easy for installation.For bare board strip, you can use 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well;if you want neon strip, also can put this 24v addressable SK6803/LC8816 led tape for neon strip.

7.24V programmable smart sk6803/LC8816 led tapes are widely used in entertainment, stage, live performance, Disco Club and TV Show, etc

8. 24V Built-in Addressable 60led 60pixel rgb strips are the same as signal with 5V/12V sk6812/ws2812b strip,which is SPI signal.

9.24V 60LED 60Pixels rgb addressable led strips are normal with 5M/Roll ,each roll with 3Pin 20AWG JST SM female and male connectors. Also can do customer length, 10m need to power at both ends.
