50mm 6pcs 12v/24v 1.44w 6pcs smd5050 RGB pixel ws2811/ucs1903/ws2801 smart led light

Part No:IL-P506V24

Features:

1.size:73mm *56mm

2.dc12v/24v 1.44W/pcs(LED on full white)

3.20pcs/chain or customer request

4.WS2811/UCS1903/WS2801 IC chip

5.SPI signal with DATA only,or ws2801 with DAT and CLK

6.Each pcs with 6pcs smd 5050 rgb led lamp and one IC chip ws2811/ucs1903

7.3/4Pin color cable with 20AWG,10cm female and male connectors on each chain.

8.Cover:clear cover,molky cover,diamond cover.

What's more

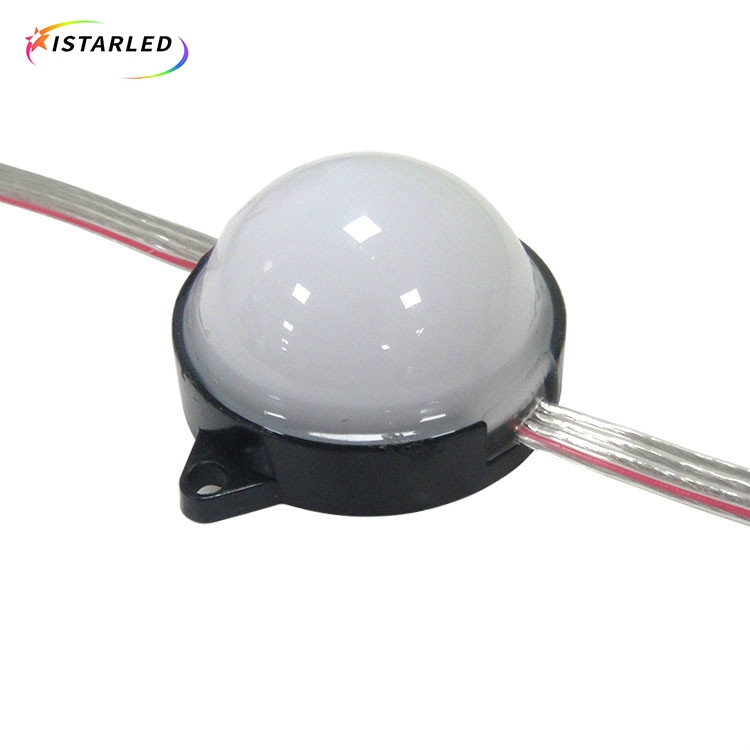

This string pixel led light is diameter 56mm with 2 ears(holes) to be 73mm,which is easy for you to intall them, each chain made by 20pcs with cable length 8cm, if you need other length and chain please tell before order. Each pixel chain is connected by 3/4Pin color cables,6pcs smd5050 rgb led lamp and one ws2811/ucs1903/ws2801 ic chip. Each chain we also make 2 extra female and male connectors to recharge power every 20pcs.Each pixels is inside full glue,so they are waterproof,you they can be used outside.Each pixels is with milky cover,we also can do clear cover and diamond cover.

You can drive these dot pixels with an Arduino,RF remote controller,or sd card controller such as K-1000c,K-8000C....You also can control them with madrix, just need dmx decoders or dmx controller with decoder function.
